Product Description

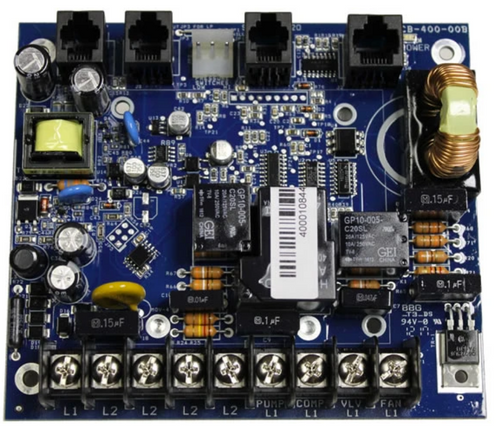

The FreezeStat/High-Temperature Limit Sensor board is the perfect companion to the Hydromatic I Chiller Control board. Used with a standard Water Temperature Sensor and an external 12-24V AC or DC power supply, it can protect the chiller from potentially damaging low or high loop water temperatures.
The FreezeStat/High-Temp Limit Sensor board can also be used to control a refrigeration system that uses a cold plate or standard evaporator.
The following settings are available:
- FreezeStat protection at 38°F (3°C)
- High-Limit protection at 125°F (52°C)
- Refrigeration thermostat operation at 28°F (-2°C)
- Refrigeration thermostat operation at 2°F (-17°C)
- Refrigeration thermostat operation at -7°F (-22°C)
- Refrigeration thermostat operation at -16°F (-27°C)
